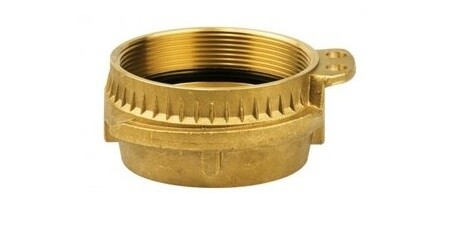

Tankwagon coupling VK male brass

General material

Brass

Material seal thread side

NBR

Thread type

BSP Female thread

Coupling type

Coupling with female thread

Coupling side type

Male

Art. no.	General material	Thread connection	Working pressure (bar)	Weight	Stock	Price per pcs	Amount
Art. no. 4640309	General material Brass	Thread connection 11/2" (DN38)	Working pressure (bar) 16 BAR	Weight 0.49 kg	Stock 25	Price per pcs £ 19.42	Amount
Art. no. 4640301	General material Brass	Thread connection 2" (DN50)	Working pressure (bar) 16 BAR	Weight 0.345 kg	Stock 539	Price per pcs £ 9.99	Amount
Art. no. 4640317	General material Brass	Thread connection 3" (DN75)	Working pressure (bar) 16 BAR	Weight 0.766 kg	Stock 820	Price per pcs £ 20.10	Amount
Art. no. 4640325	General material Brass	Thread connection 4" (DN100)	Working pressure (bar) 16 BAR	Weight 1.12 kg	Stock 193	Price per pcs £ 33.47	Amount

Inventory status

IN STOCK (delivery 1-3 workdays)

No stock (delivery time on request)

Description

Our tankwagon or TW coupling VK in brass is one of our most sold items.
The VK coupling made from high grade brass material is also called the male TW coupling.

This VK coupling is mostly assembled on a rubber hose which has a BSP outer thread.
Due to the NBR sealing / NBR washer on the inner thread a leakfree connection is created.

Brass tank wagon couplings are often used in situations where safety is a top priority, especially in environments involving flammable liquids or gases.
The key reason for using brass instead of stainless steel in some tank wagons is that brass is less likely to cause sparks upon impact.
When brass hits the ground or comes into contact with other hard surfaces, it is less likely to generate a spark compared to harder metals like stainless steel.
This is crucial in preventing accidental ignitions in hazardous areas, where even a small spark can trigger an explosion or fire, especially when flammable substances are involved.

We have this coupling available in three sizes, from 2" up to 4".
