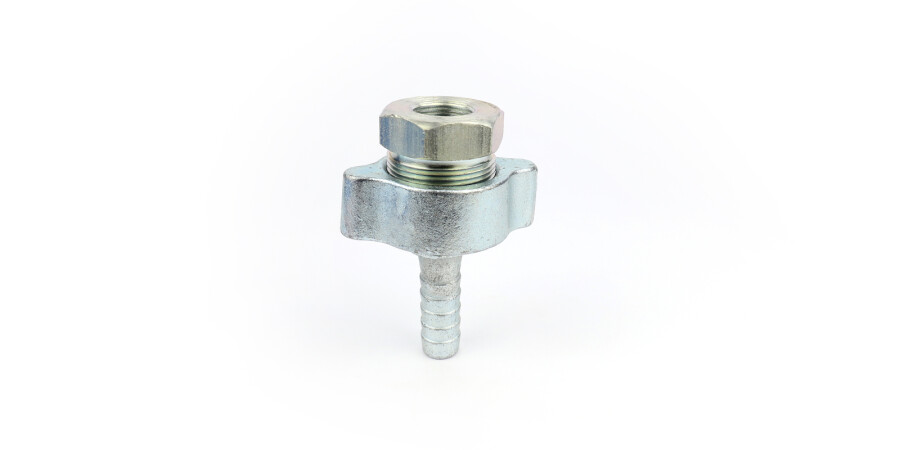

Steam coupling galvanised steel npt female thread 1"
Read moreArt. no.
4030103
General material
Galvanised steel
Suitable for mounting type
Safety clamp assembly
Thread type
NPT Female thread
Coupling type
Coupling with female thread
Coupling side type
Female
Norm 1
EN14423
Weight
0.94 kg
Stock
155
£ 33.76
Excl. VAT per pcs
Art. no. | General material | Suitable for hose (inch/mm) | Thread connection | Working pressure (bar) | Hose tail diameter (mm) | Weight | Stock | Price per pcs | Amount |
---|---|---|---|---|---|---|---|---|---|
Art. no. 4030101 | General material Galvanised steel | Suitable for hose (inch/mm) 1/2" (13 mm) | Thread connection 1/2" (DN13) | Working pressure (bar) 18 | Hose tail diameter (mm) 13 mm | Weight 0.414 kg | Stock 111 | Price per pcs £ 25.34 | Amount |
Art. no. 4030102 | General material Galvanised steel | Suitable for hose (inch/mm) 3/4" (19 mm) | Thread connection 3/4" (DN19) | Working pressure (bar) 18 | Hose tail diameter (mm) 19 mm | Weight 0.96 kg | Stock 71 | Price per pcs £ 28.59 | Amount |
Art. no. 4030103 | General material Galvanised steel | Suitable for hose (inch/mm) 1" (25 mm) | Thread connection 1" (DN25) | Working pressure (bar) 18 | Hose tail diameter (mm) 25 mm | Weight 0.94 kg | Stock 155 | Price per pcs £ 33.76 | Amount |
Art. no. 4030104 | General material Galvanised steel | Suitable for hose (inch/mm) 11/4" (32 mm) | Thread connection 11/4" (DN32) | Working pressure (bar) 18 | Hose tail diameter (mm) 32 mm | Weight 0.39 kg | Stock 4 | Price per pcs £ 56.85 | Amount |
Art. no. 4030105 | General material Galvanised steel | Suitable for hose (inch/mm) 11/2" (38 mm) | Thread connection 11/2" (DN38) | Working pressure (bar) 18 | Hose tail diameter (mm) 38 mm | Weight 0 kg | Stock 8 | Price per pcs £ 45.01 | Amount |
Art. no. 4030106 | General material Galvanised steel | Suitable for hose (inch/mm) 2" (50 mm) | Thread connection 2" (DN50) | Working pressure (bar) 18 | Hose tail diameter (mm) 50 mm | Weight 0 kg | Stock 2 | Price per pcs £ 78.38 | Amount |
Art. no. 4030108 | General material Galvanised steel | Suitable for hose (inch/mm) 2" (50 mm) | Thread connection 2" (DN50) | Working pressure (bar) 18 | Hose tail diameter (mm) 50 mm | Weight 2.57 kg | Stock 5 | Price per pcs £ 78.38 | Amount |
Inventory status | IN STOCK (delivery 1-3 workdays) | No stock (delivery time on request) |
Description
This steam coupling with hosetail and NPT (National Pipe Tapered) female thread also known as Boss couplngs is designed for secure and leak-free connections in steam systems. Made in galvanised steel for durability and corrosion resistance it ensures reliable performance in industrial environments.Steam couplings differ from normal hose couplings in a few areas. Steam couplings have extended hosetails and need to be assembled with enorforced steam safety clamps in order to handle high pressure and steam. It's not recommended to assemble these couplings with ferrules. The NPT thread provides a tight seal, preventing steam leaks while offering easy installation and disconnection. Ideal for applications requiring robust and safe steam connections.
