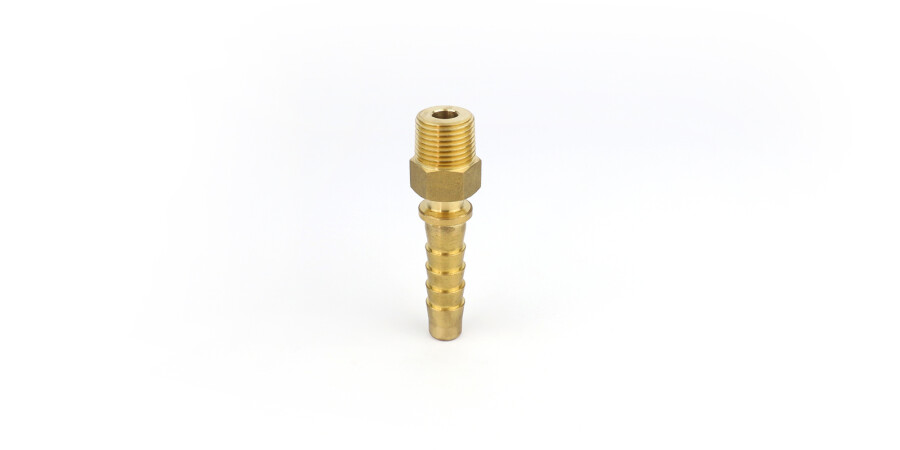

Steam coupling brass bspt male thread 1/2"
Read moreArt. no.
4030032
General material
Brass
Suitable for mounting type
Safety clamp assembly
Thread type
BSPT male thread
Coupling type
Coupling with male thread
Coupling side type
Male
Norm 1
EN14423
Weight
0.12 kg
Stock
30
£ 5.04
Excl. VAT per pcs
Art. no. | General material | Suitable for hose (inch/mm) | Thread connection | Working pressure (bar) | Hose tail diameter (mm) | Weight | Stock | Price per pcs | Amount |
---|---|---|---|---|---|---|---|---|---|
Art. no. 4030032 | General material Brass | Suitable for hose (inch/mm) 1/2" (13 mm) | Thread connection 1/2" (DN13) | Working pressure (bar) 18 | Hose tail diameter (mm) 13 mm | Weight 0.12 kg | Stock 30 | Price per pcs £ 5.04 | Amount |
Art. no. 4030033 | General material Brass | Suitable for hose (inch/mm) 3/4" (19 mm) | Thread connection 3/4" (DN19) | Working pressure (bar) 18 | Hose tail diameter (mm) 19 mm | Weight 0.186 kg | Stock 27 | Price per pcs £ 6.14 | Amount |
Art. no. 4030034 | General material Brass | Suitable for hose (inch/mm) 1" (25 mm) | Thread connection 1" (DN25) | Working pressure (bar) 18 | Hose tail diameter (mm) 25 mm | Weight 0.29 kg | Stock 18 | Price per pcs £ 9.61 | Amount |
Art. no. 4030035 | General material Brass | Suitable for hose (inch/mm) 11/4" (32 mm) | Thread connection 11/4" (DN32) | Working pressure (bar) 18 | Hose tail diameter (mm) 32 mm | Weight 0.43 kg | Stock 25 | Price per pcs £ 16.06 | Amount |
Art. no. 4030036 | General material Brass | Suitable for hose (inch/mm) 11/2" (38 mm) | Thread connection 11/2" (DN38) | Working pressure (bar) 18 | Hose tail diameter (mm) 38 mm | Weight 0.56 kg | Stock 62 | Price per pcs £ 34.54 | Amount |
Art. no. 4030037 | General material Brass | Suitable for hose (inch/mm) 2" (50 mm) | Thread connection 2" (DN50) | Working pressure (bar) 18 | Hose tail diameter (mm) 50 mm | Weight 0.88 kg | Stock 64 | Price per pcs £ 40.32 | Amount |
Inventory status | IN STOCK (delivery 1-3 workdays) | No stock (delivery time on request) |
Description
This male steam coupling with hosetail and BSPT (British Standard Pipe Tapered) thread is designed for secure and leak-free connections in steam systems. Made in brass for durability and resistance to high temperatures, it ensures reliable performance in industrial environments.Steam couplings differ from normal hose couplings in a few areas. Steam couplings have extended hosetails and need to be assembled with enorforced steam safety clamps in order to handle high pressure and steam. It's not recommended to assemble these couplings with crimping ferrules. The tapered BSPT thread provides a tight seal, preventing steam leaks while offering easy installation and disconnection. Ideal for applications requiring robust and safe steam connections.
