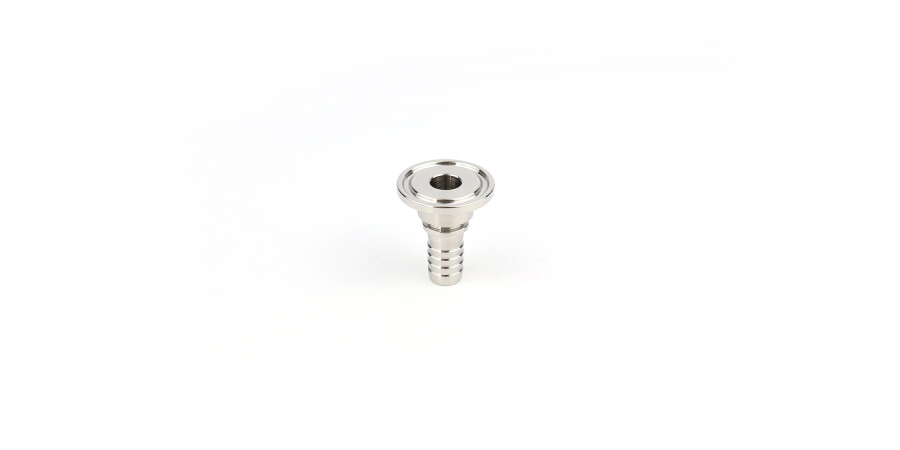

DIN 32676 Tri clamp hosetail stainless steel

General material

Stainless steel 316

Suitable for mounting type

Safety clamp & crimping assembly

Coupling type

Coupling with hose tail

Art. no.	Flange size	Hose tail diameter (mm)	Weight	Stock	Price per pcs	Amount
Art. no. 4664516	Flange size 25 MM	Hose tail diameter (mm) 13 mm	Weight 0.031 kg	Stock 199	Price per pcs £ 29.36	Amount
Art. no. 4664517	Flange size 34 MM	Hose tail diameter (mm) 13 mm	Weight 0.054 kg	Stock 221	Price per pcs £ 29.52	Amount
Art. no. 4664520	Flange size 34 MM	Hose tail diameter (mm) 19 mm	Weight 0.07 kg	Stock 162	Price per pcs £ 29.52	Amount
Art. no. 4664524	Flange size 50,5 MM	Hose tail diameter (mm) 25 mm	Weight 0.15 kg	Stock 409	Price per pcs £ 30.41	Amount
Art. no. 4664555	Flange size 50,5 MM	Hose tail diameter (mm) 32 mm	Weight 0.199 kg	Stock 61	Price per pcs £ 31.42	Amount
Art. no. 4664546	Flange size 50,5 MM	Hose tail diameter (mm) 38 mm	Weight 0.18 kg	Stock 133	Price per pcs £ 31.65	Amount
Art. no. 4664547	Flange size 64 MM	Hose tail diameter (mm) 38 mm	Weight 0.287 kg	Stock 36	Price per pcs £ 40.57	Amount
Art. no. 4664529	Flange size 64 MM	Hose tail diameter (mm) 50 mm	Weight 0.3 kg	Stock 26	Price per pcs £ 40.57	Amount
Art. no. 4664532	Flange size 77.5 MM	Hose tail diameter (mm) 65 mm	Weight 0.59 kg	Stock 20	Price per pcs £ 48.97	Amount

Inventory status

IN STOCK (delivery 1-3 workdays)

No stock (delivery time on request)

Description

Tri-Clamp DIN 32676 fittings are widely used in various industries, including food, beverage, pharmaceutical, and chemical processing, due to their hygienic design and ease of use. The DIN 32676 standard specifies the dimensions and requirements for these fittings, ensuring compatibility and reliability across different applications.

Tri-Clamp fittings, also known as sanitary clamps, consist of three main components: a ferrule, a gasket, and a clamp. The ferrules are welded to the ends of pipes or tubes, the gasket is placed between the ferrules, and the clamp holds the assembly together, creating a secure and leak-proof connection.

One of the primary advantages of Tri-Clamp DIN 32676 fittings is their hygienic design. The smooth, crevice-free surfaces minimize the risk of bacterial growth and make cleaning and sterilization easier. This is particularly important in industries where hygiene and product purity are critical3.

The materials used for Tri-Clamp DIN 32676 fittings are typically high-quality stainless steel, such as AISI 304 and AISI 316L. Stainless steel offers excellent corrosion resistance, durability, and the ability to withstand high temperatures and aggressive cleaning agents13.

Installation and maintenance of Tri-Clamp DIN 32676 fittings are straightforward. The clamp can be quickly tightened or loosened, allowing for easy assembly and disassembly without the need for special tools. This feature contributes to reduced downtime and increased efficiency in industrial processes2.

In summary, Tri-Clamp DIN 32676 fittings are a reliable and efficient solution for creating hygienic and secure connections in various industries. Their robust construction, ease of use, and compatibility with different tube standards make them a preferred choice for applications requiring stringent hygiene standards and reliable performance.
