General material
Stainless steel 316
Suitable for mounting type
Safety clamp & crimping assembly
Coupling type
Coupling with hose tail
Coupling side type
Male
Norm 1
EN 14420-7
From
£ 10.28
Excl. VAT per pcs
Art. no. | Working pressure (bar) | Hose tail diameter (mm) | Coupler size (inch/mm) | Weight | Stock | Price per pcs | Amount |
---|---|---|---|---|---|---|---|
Art. no. 4621490 | Working pressure (bar) 18 | Hose tail diameter (mm) 25 mm | Coupler size (inch/mm) 1" (DN25) | Weight 0.188 kg | Stock 0 | Price per pcs £ 10.99 | Amount |
Art. no. 4621491 | Working pressure (bar) 18 | Hose tail diameter (mm) 50 mm | Coupler size (inch/mm) 2" (DN50) | Weight 0.635 kg | Stock 0 | Price per pcs £ 26.40 | Amount |
Art. no. 4621492 | Working pressure (bar) 9 | Hose tail diameter (mm) 75 mm | Coupler size (inch/mm) 3" (DN75) | Weight 1.05 kg | Stock 0 | Price per pcs £ 45.60 | Amount |
Art. no. 4621493 | Working pressure (bar) 7 | Hose tail diameter (mm) 100 mm | Coupler size (inch/mm) 4" (DN100) | Weight 1.925 kg | Stock 0 | Price per pcs £ 81.50 | Amount |
Art. no. 4621494 | Working pressure (bar) 18 | Hose tail diameter (mm) 32 mm | Coupler size (inch/mm) 11/4" (DN32) | Weight 0.29 kg | Stock 0 | Price per pcs £ 14.69 | Amount |
Art. no. 4621495 | Working pressure (bar) 18 | Hose tail diameter (mm) 38 mm | Coupler size (inch/mm) 11/2" (DN38) | Weight 0.379 kg | Stock 0 | Price per pcs £ 20.32 | Amount |
Art. no. 4621497 | Working pressure (bar) 18 | Hose tail diameter (mm) 19 mm | Coupler size (inch/mm) 3/4" (DN19) | Weight 0.105 kg | Stock 0 | Price per pcs £ 10.28 | Amount |
Inventory status | IN STOCK (delivery 1-3 workdays) | No stock (delivery time on request) |
Description

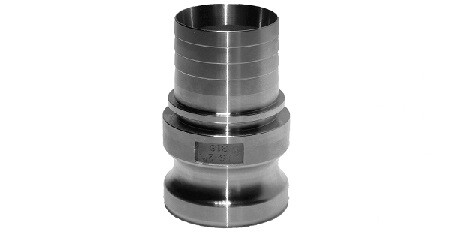

Camlock Type ES stainless steel couplings are popular components in various sectors due to their versatility and ease of use. These couplings, also known as cam and groove couplings, are often used for quickly and safely connecting hoses and pipes. This coupling with a hose tail has a collar for clamp and crimp sleeve mounting.The stainless steel construction of Camlock Type ES couplings offers a durable and corrosion-resistant solution. This makes them particularly suitable for applications where strength and corrosion resistance are crucial, such as in the chemical and marine industries. The Type ES coupling has a male camlock adapter on one side and a hose tail with a collar for assembly with safety clamps or ferrules. This allows the camlock to be directly mounted onto the hose, eliminating the need to fit two couplings together, thus reducing the risk of leaks.
A key advantage of stainless steel Camlock Type ES couplings is their ease of use. They can be quickly and easily connected and disconnected by moving the cam handles up or down. This makes them ideal for situations requiring quick connections. Additionally, the stainless steel material offers an excellent balance between strength and corrosion resistance, contributing to their user-friendliness.
Camlock Type ES stainless steel couplings are a reliable and efficient solution for connecting hoses and pipes in various industries. Their robustness, durability, and easy installation make them a popular choice for applications in the chemical and marine industries. With various sizes available, these couplings can meet diverse needs, making them a versatile option for many applications.
