Camlock Saflock Type CC stainless steel
Read moreGeneral material
Stainless steel 316
Suitable for mounting type
Safety clamp & crimping assembly
Material handles
SS316
Material seal coupling side
NBR
Coupling type
Coupling with hose tail
Coupling side type
Female
From
£ 60.82
Excl. VAT per pcs
Art. no. | General material | Working pressure (bar) | Hose tail diameter (mm) | Coupler size (inch/mm) | Weight | Stock | Price per pcs | Amount |
---|---|---|---|---|---|---|---|---|
Art. no. 4622224 | General material Stainless steel | Working pressure (bar) 16 | Hose tail diameter (mm) 20 mm | Coupler size (inch/mm) 3/4" (DN19) | Weight 0.42 kg | Stock 3 | Price per pcs £ 60.82 | Amount |
Art. no. 4622225 | General material Stainless steel | Working pressure (bar) 16 | Hose tail diameter (mm) 25 mm | Coupler size (inch/mm) 1" (DN25) | Weight 0.51 kg | Stock 159 | Price per pcs £ 62.85 | Amount |
Art. no. 4622226 | General material Stainless steel | Working pressure (bar) 16 | Hose tail diameter (mm) 32 mm | Coupler size (inch/mm) 11/4" (DN32) | Weight 0.79 kg | Stock 3 | Price per pcs £ 65.43 | Amount |
Art. no. 4622227 | General material Stainless steel | Working pressure (bar) 16 | Hose tail diameter (mm) 38 mm | Coupler size (inch/mm) 11/2" (DN38) | Weight 0.86 kg | Stock 14 | Price per pcs £ 66.76 | Amount |
Art. no. 4622228 | General material Stainless steel | Working pressure (bar) 16 | Hose tail diameter (mm) 50 mm | Coupler size (inch/mm) 2" (DN50) | Weight 0.87 kg | Stock 89 | Price per pcs £ 75.77 | Amount |
Art. no. 4622229 | General material Stainless steel | Working pressure (bar) 16 | Hose tail diameter (mm) 63 mm | Coupler size (inch/mm) 21/2" (DN63) | Weight 1.28 kg | Stock 26 | Price per pcs £ 105.63 | Amount |
Art. no. 4622230 | General material Stainless steel | Working pressure (bar) 16 | Hose tail diameter (mm) 75 mm | Coupler size (inch/mm) 3" (DN75) | Weight 2.09 kg | Stock 15 | Price per pcs £ 138.86 | Amount |
Art. no. 4622231 | General material Stainless steel | Working pressure (bar) 16 | Hose tail diameter (mm) 100 mm | Coupler size (inch/mm) 4" (DN100) | Weight 3.4 kg | Stock 14 | Price per pcs £ 243.67 | Amount |
Inventory status | IN STOCK (delivery 1-3 workdays) | No stock (delivery time on request) |
Description

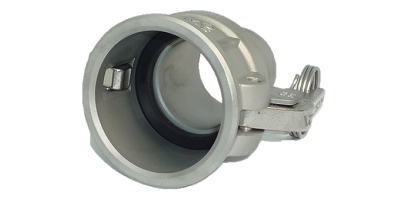

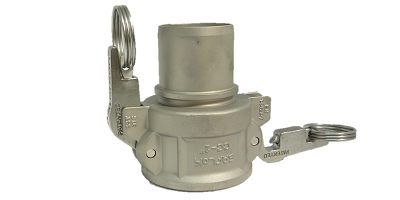

Camlock Saflock Stainless Steel with smooth hosetail. Also known as type CC.Type CC is a hosetail with safety collar, allowing you to assemble this coupling to the hose using a safety clamp or crimping ferrule.
The Saflock coupling improves the safety of couplings during the transport of high value and risky liquid chemicals.
It prevents accidental disconnection, which can occur due to human negligence or the natural abrasion of the metal locking cam face.
Close the patented arms normally and they lock themselves. You can easily unlock it by pulling the finger rings.
With its automatic locking system the Saflcok couplings will ensure more safety for people and the environment .
These couplings are interchangeable with all camlock couplings.
