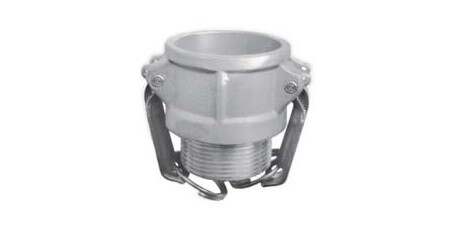

Camlock female connection with male thread type B aluminium 1/2 16 bar

Art. no.

4620011

General material

Aluminium

Material seal coupling side

NBR

Thread type

BSP Male thread

Coupling type

Coupling with male thread

Coupling side type

Female

Weight

0.04 kg

Stock

Art. no.	General material	Thread connection	Working pressure (bar)	Coupler size (inch/mm)	Weight	Stock	Price per pcs	Amount
Art. no. 4620011	General material Aluminium	Thread connection 1/2" (DN13)	Working pressure (bar) 16	Coupler size (inch/mm) 1/2" (DN13)	Weight 0.04 kg	Stock 39	Price per pcs £ 3.18	Amount
Art. no. 4620012	General material Aluminium	Thread connection 3/4" (DN19)	Working pressure (bar) 16	Coupler size (inch/mm) 3/4" (DN19)	Weight 0.101 kg	Stock 34	Price per pcs £ 3.39	Amount
Art. no. 4620013	General material Aluminium	Thread connection 1" (DN25)	Working pressure (bar) 16	Coupler size (inch/mm) 1" (DN25)	Weight 0.137 kg	Stock 374	Price per pcs £ 3.87	Amount
Art. no. 4620015	General material Aluminium	Thread connection 11/4" (DN32)	Working pressure (bar) 16	Coupler size (inch/mm) 11/4" (DN32)	Weight 0.232 kg	Stock 316	Price per pcs £ 5.68	Amount
Art. no. 4620014	General material Aluminium	Thread connection 11/2" (DN38)	Working pressure (bar) 16	Coupler size (inch/mm) 11/2" (DN38)	Weight 0.264 kg	Stock 160	Price per pcs £ 6.11	Amount
Art. no. 4620016	General material Aluminium	Thread connection 2" (DN50)	Working pressure (bar) 16	Coupler size (inch/mm) 2" (DN50)	Weight 0.32 kg	Stock 189	Price per pcs £ 6.95	Amount
Art. no. 4620017	General material Aluminium	Thread connection 21/2" (DN63)	Working pressure (bar) 10	Coupler size (inch/mm) 21/2" (DN63)	Weight 0.374 kg	Stock 125	Price per pcs £ 8.55	Amount
Art. no. 4620018	General material Aluminium	Thread connection 3" (DN75)	Working pressure (bar) 8	Coupler size (inch/mm) 3" (DN75)	Weight 0.563 kg	Stock 57	Price per pcs £ 10.95	Amount
Art. no. 4620019	General material Aluminium	Thread connection 4" (DN100)	Working pressure (bar) 7	Coupler size (inch/mm) 4" (DN100)	Weight 0.768 kg	Stock 32	Price per pcs £ 14.59	Amount
Art. no. 4620020	General material Aluminium	Thread connection 6" (DN150)	Working pressure (bar) 5	Coupler size (inch/mm) 6" (DN150)	Weight 1.543 kg	Stock 37	Price per pcs £ 28.86	Amount

Inventory status

IN STOCK (delivery 1-3 workdays)

No stock (delivery time on request)

Description

Camlock Type B aluminium couplings are popular components in various sectors due to their versatility and ease of use. These couplings, also known as cam and groove couplings, are often used for quickly and safely connecting hoses and pipes.

The aluminium construction of Camlock Type B couplings provides a lightweight and durable solution. This makes them particularly suitable for applications where weight is an important factor, such as in the water and wastewater industries.
The Type B coupling features a female camlock adapter on one side and a male BSP thread on the other.

A key advantage of aluminium Camlock Type B couplings is their ease of use. They can be quickly and easily connected and disconnected by moving the cam handles up or down.
This makes them ideal for situations where quick connections are required. Additionally, the aluminium material offers an excellent balance between strength and weight, contributing to ease of use.

Camlock Type B aluminium couplings are a reliable and efficient solution for connecting hoses and pipes in various industries.
Their lightweight, durability, and easy installation make them a popular choice for applications in the water and wastewater industries.
With the different available sizes, these couplings can meet diverse needs, making them a versatile option for many applications.
